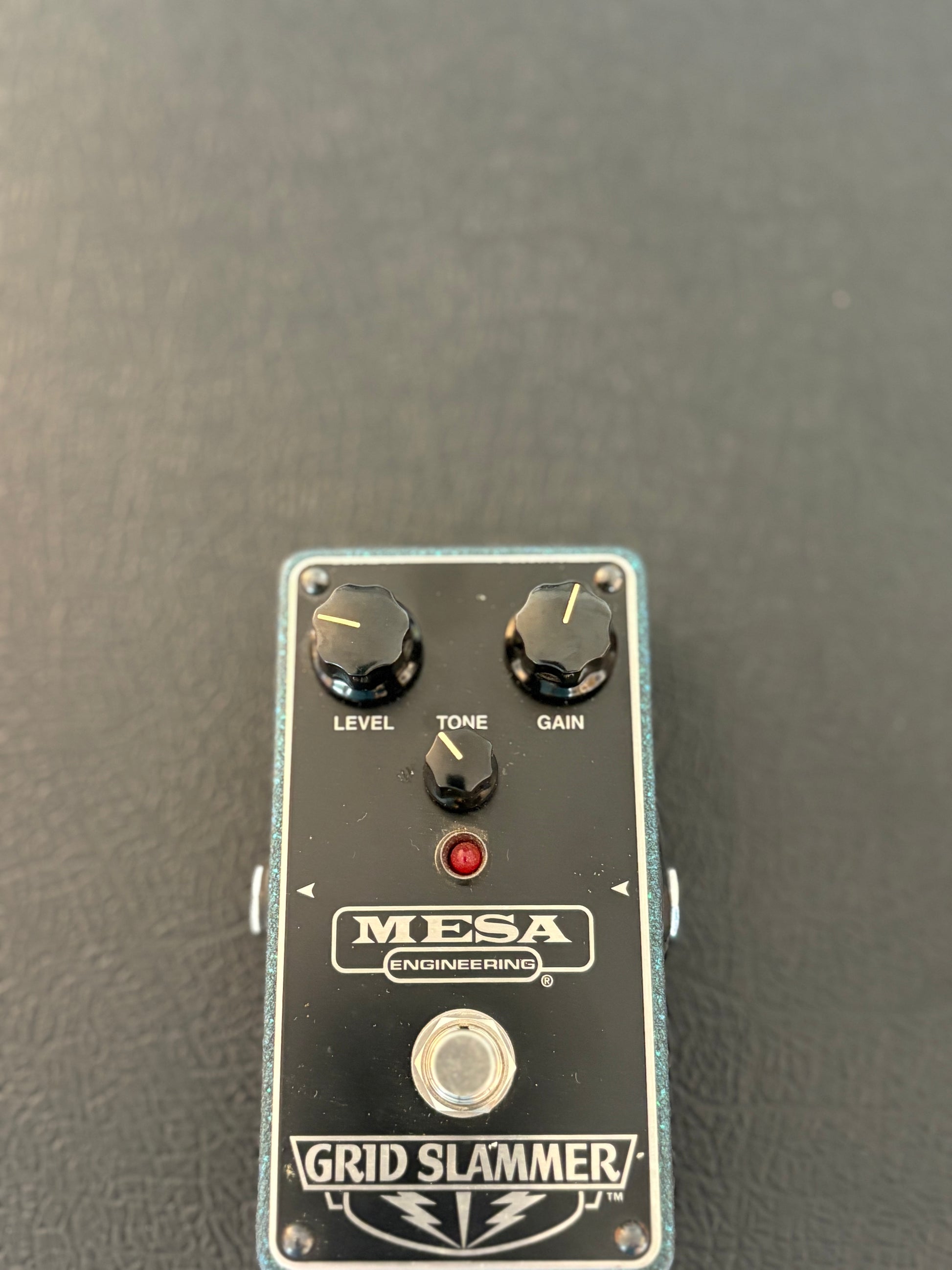

USED Mesa Boogie Grid Slammer*

A Classic, Guitar-Centric Midrange Bump that Enhances Many Different Playing Styles
The GRID SLAMMER™ overdrive pedal produces a variable boost in gain over a wide range with a classic, guitar-centric midrange bump that enhances many different playing styles. It’s a true overdrive “specialist” that covers an amazing array of what many top players consider the most expressive and musical ranges of overdrive. From sweet, subtle breakup to a harmonically smoldering overdrive that can both sting and sing, the GRID SLAMMER sets a new bar in legendary overdrive!

Features:

Designed and Handcrafted in Petaluma, California, USA

True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss

Gain Control allows you to dial in the perfect amount of vintage breakup or classic overdrive

Master Level Control provides a variable range of signal boost up to +20dB

Tone Control balances the amount of high frequencies

On/Off Status LED

9V Battery Powered or Externally Powered (optional) via External Power Jack Input

Input & Output Jacks (Nominal Input -20dB)

Electronics Pedal
Controls
Gain Control allows you to dial in the perfect amount of vintage breakup or classic overdrive, Master Level Control provides a variable range of signal boost up to +20db, Tone Control balances the amount of high frequencies

Switches
True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss,

LED Indicators
On/Off Status LED

Power Requirements
9V Battery Powered or optional AC Powered via External Power Jack Input. WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.

Current Draw
9VDC/15mA

Input Output Jacks
Input & Output Jacks (Nominal Input -20 db)

Input Impedance
1M Ohm (500k Ohm minimum)

Output Impedance
10k Ohm

Switching Type
True Bypass

Dimensions
4.77 x 2.87 x 2.28

Weight
0.731
