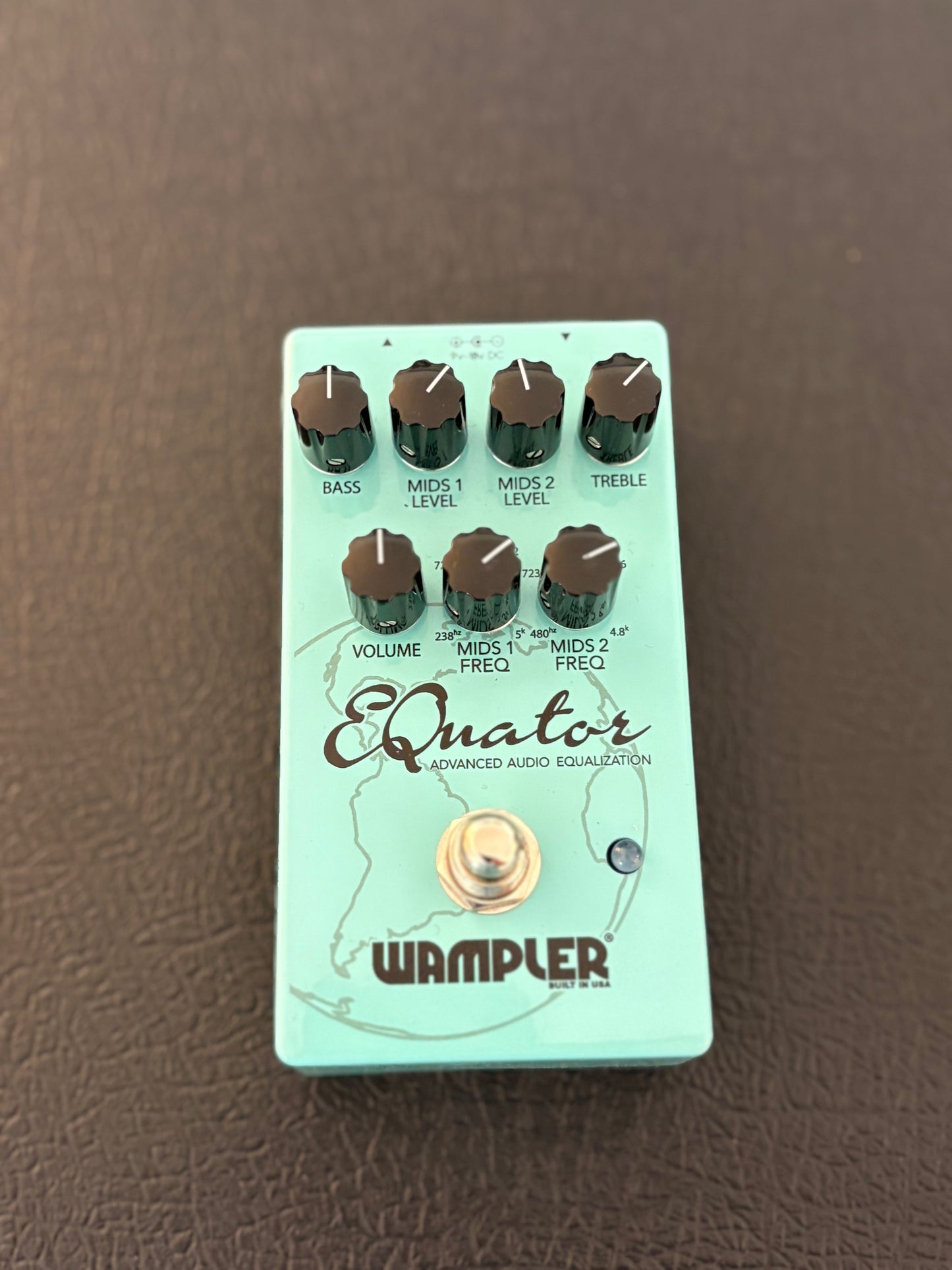

USED Wampler EQuator*

EQ. It’s one of the most misunderstood and misused part of our signal chains...
EQ is everything. It’s what makes every pedal sound like it does, it’s what makes
every amp sound like it does... a lot of people think that certain parts or tubes
are the deciding factor, although important, nothing shapes a tone like placing
the right EQ in the right place. Why do we overlook it so much? The simple
answer, I don’t know... maybe it’s because it’s not glamorous and not as exciting
as a tube, or maybe because it’s hard to visualize in the same way we can other
parts of the chain. Look at fuzz pedals, the reason they sound the way they do is
because of a certain shape EQ hitting the gain stages, in virtually the same way it
does in a dumble amp. Look at our favorite amps, the inherent ‘smiley face’ EQ in
them makes them sound like that... and what do we do, we put an opposite EQ
curve into them to make them sing... All this is EQ.
 When designing the perfect EQ pedal, we located the frequencies that we are
used to hearing, without necessarily knowing what they are, and highlighted
them. The bass is centered around that warm depth, the highs are around the
areas of glassiness, and the mids... well, to properly control the mids you don’t
need one, you need two options to really cover the bases. Not high and low
mids, but 2 controls over the entire spectrum to give maximum versatility.
 Why does a TS sound the way it does? Why does a K style pedal sound that way,
what makes a 4x12” give it’s thump? What makes a tube amp have it’s glassy
sound... it’s all in the EQ. And with the EQuator, we can give you all those within
one pedal to tweak as you desire.

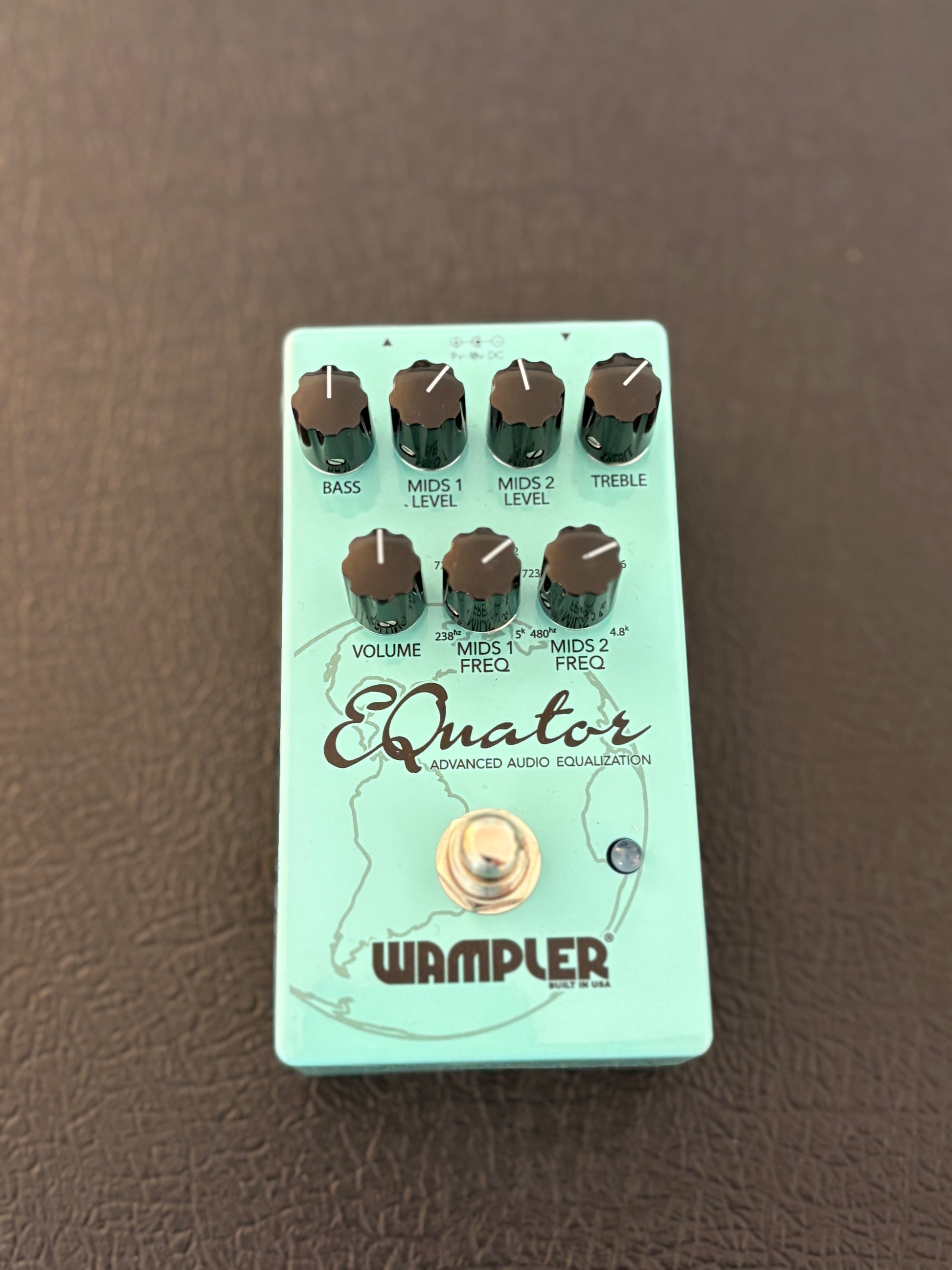

 To get the most out of your new pedal, you'll want to become very familiar with
the controls. The EQuator features Volume, Bass, Treble, 2 Mid levels, and 2 Mid
Frequency controls. These can give you a HUGE amount of variation and flexibili
ty just from the gear you already have... this is the perfect pedal for you to get
lost in exploring various combinations and finding tones you didn’t know your rig
was capable of.
Bypass – A relay based true-bypass footswitch that ensures your signal is unaffected when
bypassed.
Volume – Controls the overall level of the pedal. The EQuator can be used as the perfect
clean boost driving your other pedals or amp for more gain, or you can use the pedal as an
end-of-chain tone shaper... so, you’ll want high volume for one and unity for the other...
Testing is the easiest option. Put it in all places in your signal chain, find where it works best
for you.
 Bass - Active control of 130htz, plus and minus 19db. As always, how this reacts all depends
on where you put it in your signal chain. If placed at the end of your chain as a tone shaper,
this will react like suddenly putting your amp through a closed back 4x12” cab... A large
amount of warmth and thump will appear... It can also give the impression of tightening up the
bass when cut to the right amount... When positioned pre-gain, you can start to smash the low
end of the tone, giving your overdrives and distortion fuzz characteristics when pushed hard.
When pushed in a more subtle way, you can thicken up your tone to sound a little like a
D-style amp. Don’t overlook the bass control, find that sweet spot and exploit it fully.
 Treble - 7kz, plus or minus 19db... The location of the sparkle and chime. Now, many amps are
known to sparkle and be potentially bright and responsive... On the flip side of that, this is
also where certain rooms can cause your ears to ring for days afterwards. By controlling the
high end of your signal before it hits the amp, you can bring that shrillness back under control.
On the flip side, if you are looking to brighten up your amp a little, here is where to bring it
back in. When you stick it before pedals, you can make the pedals that sit behind it react
completely differently. You can make that drive cut through a little more, give it a little more
brightness and make sure you can be heard without increasing the volume dramatically.
Mid Levels - This is where the majority of your tweaking will take place... when you choose your
frequency, these will be places where you can cut or boost. Mid 1 can cut or boost the selected
frequency by up to 15db. Mid 2 can cut or boost the selected frequency by up to 25db. As you can
imagine, this is a MASSIVE amount to play with, so don’t be shy to slowly bring them in and out to
find your sweet spot. We’ll be very surprised if you end up at the extremes of these controls. There
are some fun tones hidden when pairing the two levels together with various mid frequencies. It’s all
about tweaking and finding those hidden tones.
 Mid Freq. - This is where the fun really starts! Mid1 allows you to sweep between 238hz and 5khz.
Mid2 ranges from 480hz to 4.8ktz. So, you have a lot of room to choose the places you want to tweak.
This isn’t just low and high mids, this is pretty much all of the mids available to you on both. So, where
do we go from here... Well, if you are using the EQuator as a tone shaper, you’ll be looking to tame
some of the mids, maybe scoop out between 1k and 2.2k, probably closer to 2.2k - that’s your classic
mid scoop location and will make any amp give you a little bit of a smiley face feel. When you are
using this pre gain, whether that be your amps gain or drive pedals, you’ll want to take note of some
of the frequencies highlighted...
Mid 1 has a larger Q, while Mid 2 has a more narrow Q, so you have the option to really nail down the
style of change you make between the two controls.
 723hz is your classic TS boost point - so, if you are looking to give that famous little green mid hump
to push your amp into a tighter territory, this is frequency to hone in on. A lot of players use their little
green overdrive pedal with the gain set to 0 because of the EQ change, this is the way to do it in the
cleanest and most useable way you can image. All the tone, none of the unnecessary compression...
1k is your classic K style pedal hump. Once again, this is the place to hone into if you are looking to
give that famous fatness and response. As mentioned above, a lot of players employ these pedals
with the gain on 0 or barely just above because of the hump, using this frequency will give you that
hump but without the increased compression and muddiness that can be found on those pedals. As
those pedals are known to be a little missing on the bass end, using the EQuator to bring the bass
back in.
 2.2K - the classic scoop. Is your amp a little u y around the mid range? Use the EQuator to clear it up...
